We have tried to demonstrate the ability to perform a successful remote PDB clone to an environment with physical standby database running.

Note the below

• Source Database (ORCL) : The CDB having the PDB to be cloned, running on 19.8
• Target Database (PRODCDB): The Primary CDB to which the PDB will be getting attached , running 19.28
• Standby Database(PRODCDBDR) : The Standby Database for the Target Primary CDB, running 19.28
• Data Guard Managed Target / Standby Database, with Data Guard Broker enabled

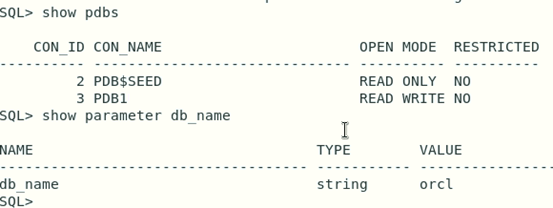

At the source Database

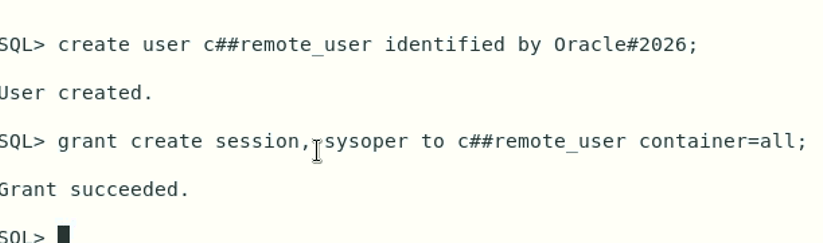

Create the common user

At the Target Database

Create the database link to connect to the common user created at the source CDB

At the Standby Database

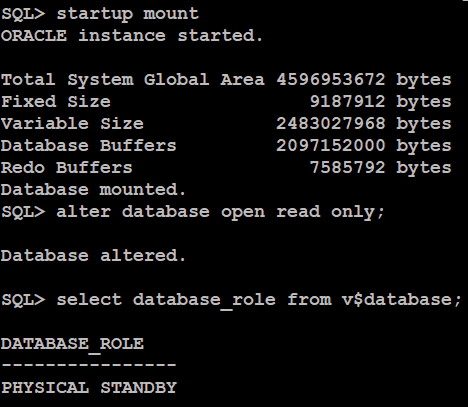

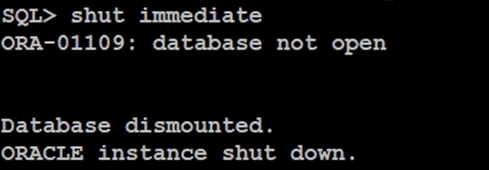

Open the CDB in read only mode and resume recovery (Active Data Guard)

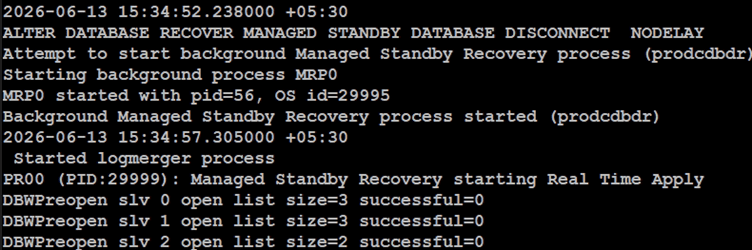

Broker starts the apply process automatically

Notice the STANDBY_PDB_SOURCE_FILE_DBLINK set to the DBLink we created for remote clone. Make sure the corresponding TNS entry appears on Standby host as well.

Verify DB Link from standby DB

Create the clone from Target Database

Once completed

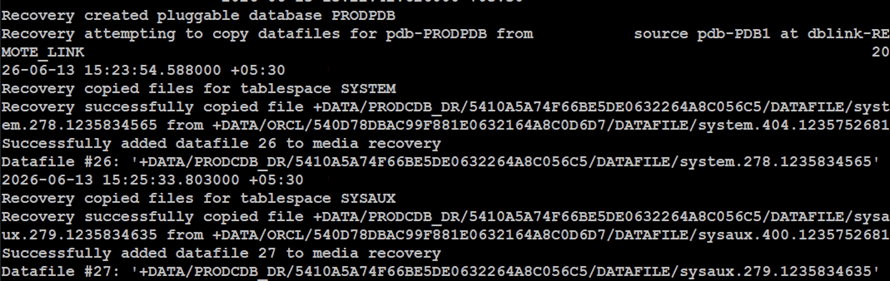

Check standby Database Alert

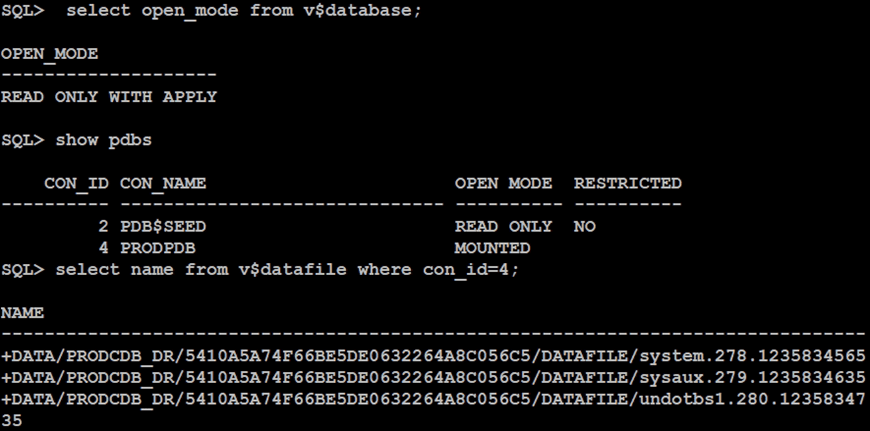

Check Standby Database

You’d see the number of files copied over

On target Database you resume operations

Note that Source PDB will remain read-only until all files are copied on to the Standby Database.

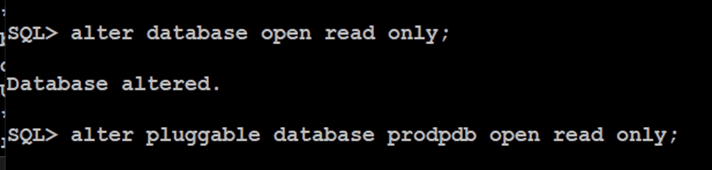

Meanwhile, open PRODPDB.

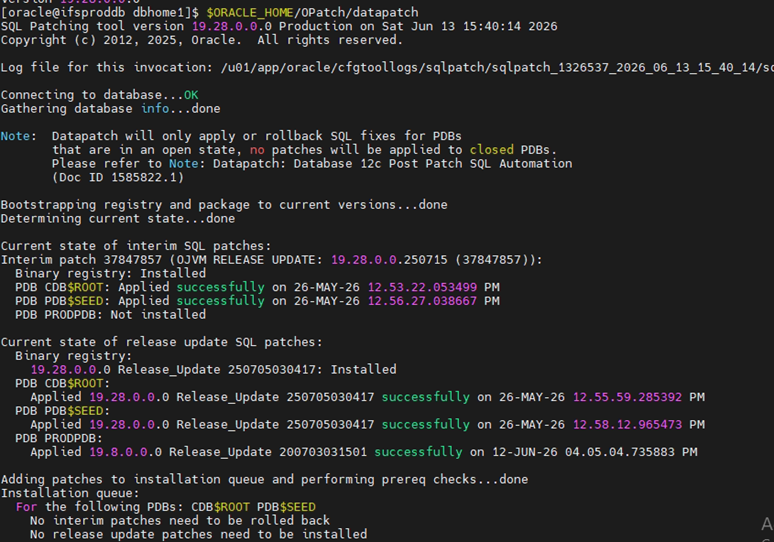

Our source PDB version was 19.8, hence needed to apply data patch

In Our case, we had a mismatch of having OLAP on Source DB which was not required. Hence, once the data patch was installed, we ran below commands on Target PDB to drop OLAP.

@?/olap/admin/catnoxoq.sql

@?/olap/admin/catnoaps.sql

@?/rdbms/admin/utlrp.sql

Once the datafiles are copied and recovery commences on the Standby Database, we could bring it to mount state.

Other Observations

Documentation indicates the need to set below parameter

Setting the above parameter on Standby DB will be useful when an PDB Archive is copied over to Standby database and recover using the .pdb. You may use this method if the PDB is unplugged from the Source.

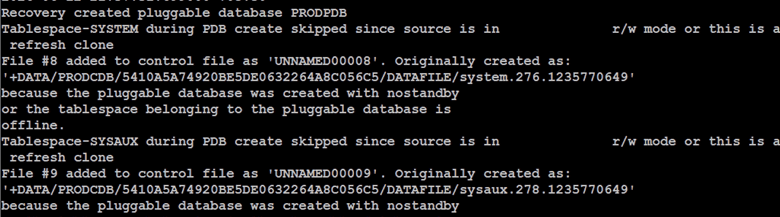

In the event if the Source database is not opened in read only or in other words, Source database was used to do a hot clone, Standby database file copy will fail and below will be shown on Standby DB alert log.

Below messages were observed on Standby Alert log

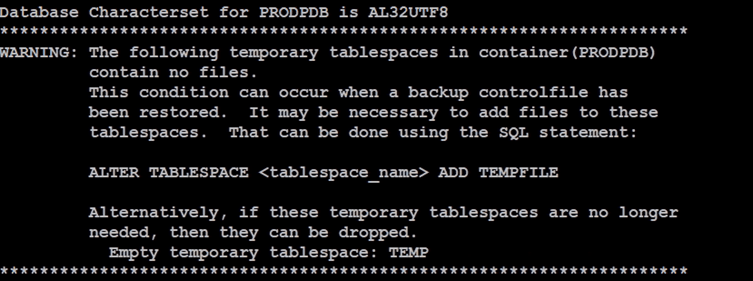

Below messages were shown on Standby alert log, but the tempfiles were added when it was opened in read only.

Reset Parameter from Standby Database
