By gayan In oracle 19c, several automations were introduced to database configuration assistant (DBCA) in duplicating databases, cloning or relocating pluggable databases (PDBs). These methods help the DBA to complete these tasks at a rapid pace, without using expensive GUI operations.
Remote cloning of Pluggable database

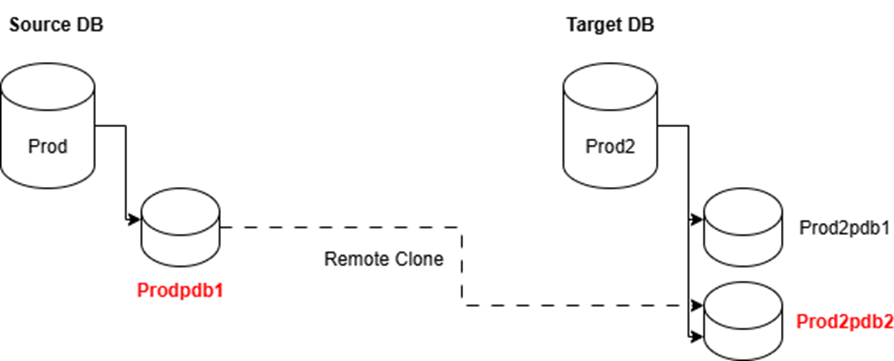

The setup

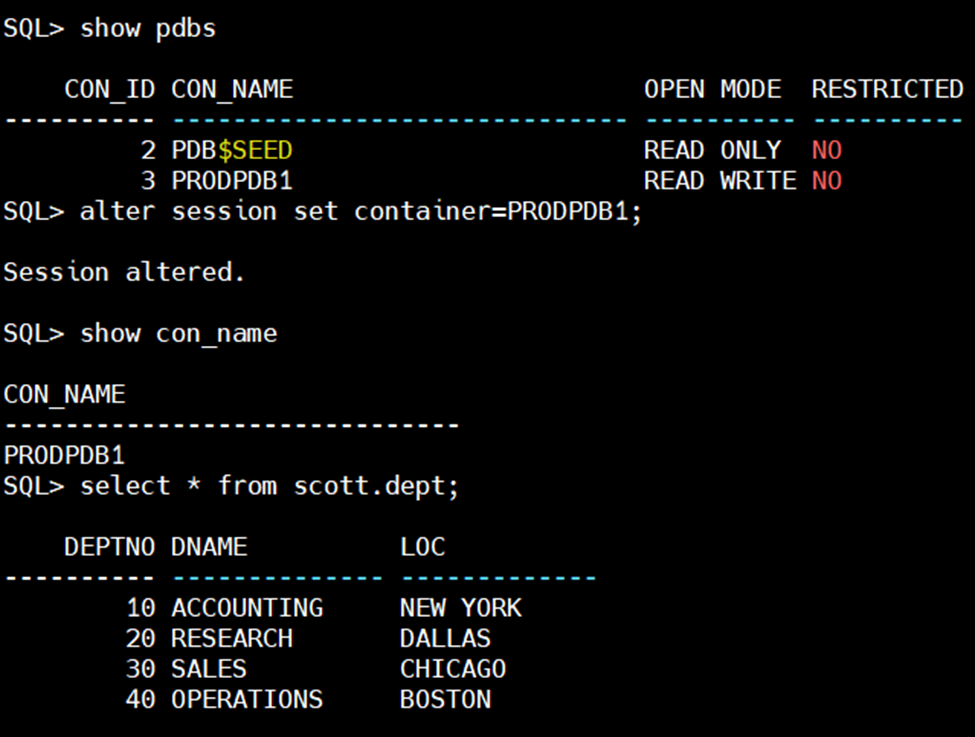

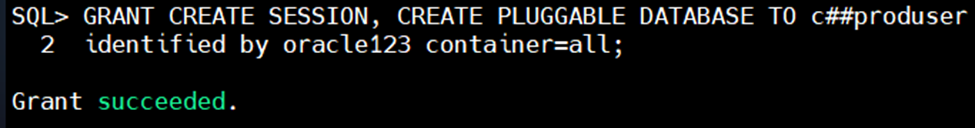

Prepare Source Database (where the Original PDB Runs) – PROD

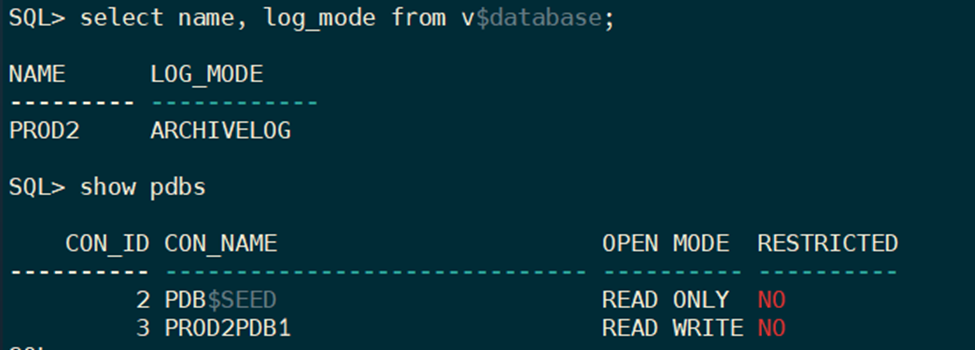

Prepare Target Database (where the remote clone will reside) – PROD2

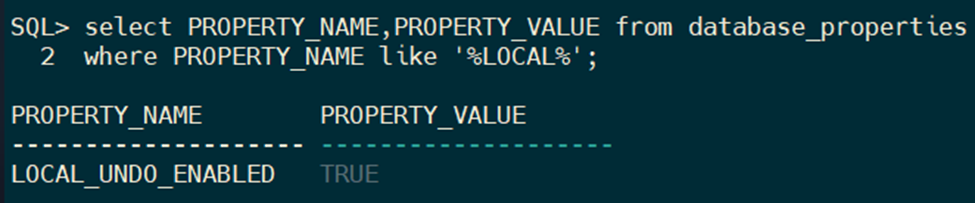

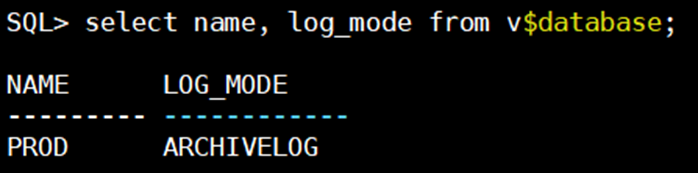

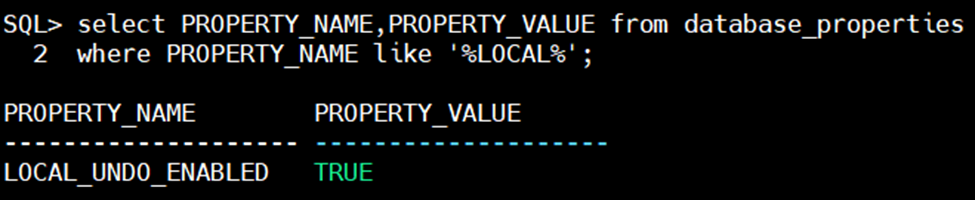

As we know, enabling archived log mode and setting local undo (to TRUE), at least on our source database (prod) , helps us to perform the cloning without impacting the availability of the source database.
Now that we have all the pre-requisites met, below command will initiate the cloning of PRODPDB1 from PROD database to PROD2PDB2 on PROD2 database.
Remote clone
Note : Ensure PRODPDB1 is in read write mode

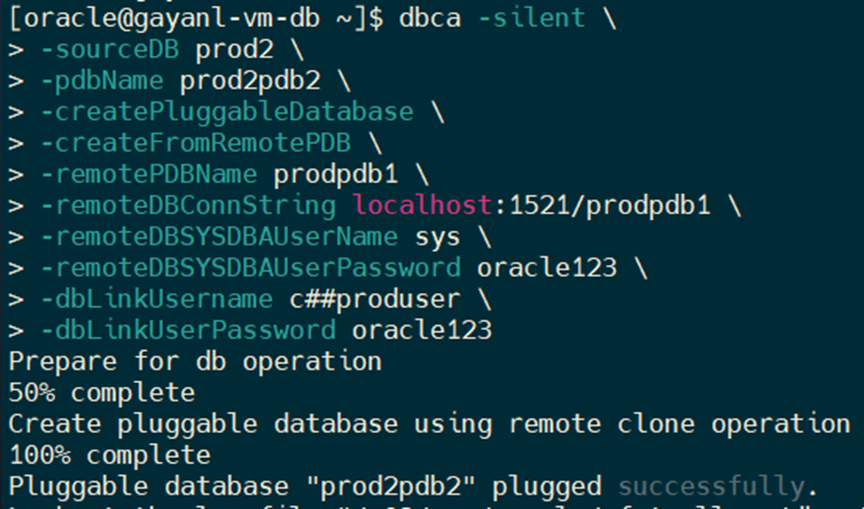

dbca -silent \
-sourceDB prod2 \ — target CDB
-pdbName prod2pdb2 \ — target PDB name
-createPluggableDatabase \
-createFromRemotePDB \
-remotePDBName prodpdb1 \ — source PDB
-remoteDBConnString localhost:1521/prodpdb1 \ — using easy connect method
-remoteDBSYSDBAUserName sys \ — source CDB user
-remoteDBSYSDBAUserPassword oracle123 \ — source CDB password
-dbLinkUsername c##produser \ — source CDB link user
-dbLinkUserPassword oracle123 — source CDB link user password

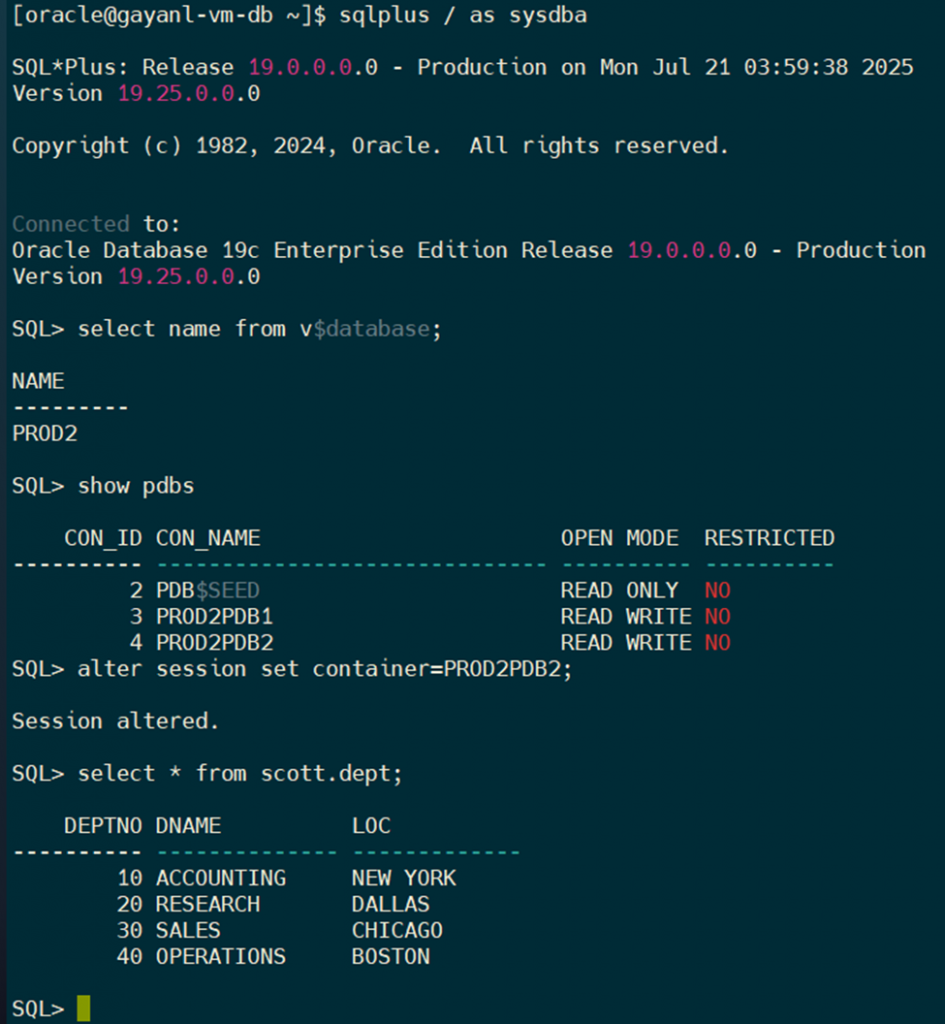

Now verify the New PDB
